Project - Image Segmentation

Image Segmentation with Scribble Supervision

End-to-end binary segmentation from sparse scribbles using an EfficientNet-B2 U-Net with region-based losses and careful augmentation for weak supervision.

built with

PyTorch
segmentation_models.pytorch
timm
EfficientNet-B2
U-Net
AdamW
Albumentations

Binary image segmentation—dividing images into foreground and background regions at the pixel level—is fundamental in computer vision with applications in medical imaging, autonomous driving, and interactive editing. This project addresses the challenge of sparse supervision, where only limited scribbles are provided instead of dense masks. By leveraging modern deep learning architectures and carefully designed loss functions, we achieve competitive segmentation performance while dramatically reducing annotation costs. The approach combines a U-Net decoder with an EfficientNet-B2 encoder, optimized using region-based losses (Dice/IoU) blended with binary cross-entropy for stable training under weak supervision.

Project Overview

Challenge

Predict dense binary segmentation masks from RGB images paired with sparse scribble annotations, where only a tiny fraction of pixels are labeled.

Approach

End-to-end deep learning with early fusion of scribbles, region-based composite losses, and synthetic scribble augmentation to maximize generalization from limited supervision.

Methodology Pipeline

Five-Stage Workflow

The segmentation pipeline turns sparse scribbles into dense masks via a structured five-stage process, moving from input preparation to model selection and rigorous evaluation.

Primary Goal

Preserve alignment between images, scribbles, and masks while maximizing mIoU under weak supervision.

Outputs

Dense binary masks with stable calibration across folds.

Input Encoding

Scribble mapping, channel fusion, resizing, normalization

Architecture

EfficientNet-B2 encoder, U-Net decoder, scSE attention

Loss Design

Region-based (Dice/IoU) + BCE composite with class reweighting

Augmentation

Geometric transforms, scribble synthesis, intensity variations

Evaluation

5-fold CV, ensemble averaging, mIoU-based selection

Problem Formulation

We observe an RGB image and a sparse scribble mask with three label states. The goal is to predict a dense binary mask that maximizes mean Intersection over Union (mIoU) against the ground truth.

Label Semantics

0 = background, 1 = foreground, ∅ = unlabeled

Optimization Target

Maximize mIoU between prediction and ground truth over foreground and background classes.

Mathematical Setup

RGB image

b \in \mathbb{R}^{n_x \times n_y \times 3}

Scribble mask

c \in \{0,1,\emptyset\}^{n_x \times n_y}

Prediction

\hat{g} \in \{0,1\}^{n_x \times n_y}

Ground truth

g \in \{0,1\}^{n_x \times n_y}

Intersection over Union (IoU)

IoU measures the overlap between predicted and ground truth regions:

\text{IoU}_k = \frac{|\{g=k\} \cap \{\hat{g}=k\}|}{|\{g=k\} \cup \{\hat{g}=k\}|}

Ranges from 0 (no overlap) to 1 (perfect match)

Mean IoU (mIoU)

mIoU averages IoU across foreground and background classes:

\text{mIoU} = \frac{\text{IoU}_{\text{bg}} + \text{IoU}_{\text{fg}}}{2}

Provides balanced evaluation across both classes

Input Processing & Encoding

Preprocessing Pipeline

Raw inputs undergo systematic transformations to prepare them for neural network processing, including scribble encoding, spatial resizing, channel-wise normalization, and early fusion of visual and annotation information.

Step 1: Scribble Encoding & Resizing

Mapping Sparse Annotations to Network Input

Scribbles are encoded numerically and resized to match the network architecture constraints while preserving annotation integrity.

Scribble Mapping

Background:

0 \rightarrow -1

Foreground:

1 \rightarrow +1

Unlabeled:

\emptyset \rightarrow 0

Spatial Resizing

Original:

500 \times 375

Resized:

480 \times 352

Largest multiple of 32 below original resolution

Interpolation Methods

RGB Image: Lanczos (preserves edges)

Masks: Nearest-neighbor (preserves labels)

Step 2: Normalization & Channel Fusion

Early Fusion Strategy

The scribble mask is concatenated as a fourth channel to the RGB image, providing immediate access to annotation information throughout the encoder hierarchy.

Channel-wise Normalization

Mean:

(0.4589, 0.4589, 0.4215)

Std:

(0.2618, 0.2633, 0.2822)

Computed from training set RGB channels

4-Channel Input Tensor

Input = concat(RGB_norm, Scribble)

Shape: [B, 4, 480, 352]

Enables contextual scribble interpretation

Model Output & Thresholding

Probabilistic Prediction

The network outputs a continuous probability map

\hat{p} \in (0,1)^{n_x \times n_y}

where each pixel value represents foreground probability.

Binary Decision

A fixed threshold

\tau = 0.5

converts probabilities to binary predictions without calibration.

Thresholding Function

The binary mask is obtained by applying a fixed threshold to the probability map.

This produces a hard decision used for evaluation and reporting.

Gradient descent optimizes the soft probabilities

\hat{p}

, not the binarized masks

\hat{g}

\hat{g}_i = \begin{cases}1 & \text{if } \hat{p}_i \ge \tau \\ 0 & \text{otherwise}\end{cases}

\tau = 0.5

Loss Function Design

Composite Loss Strategy

Training optimizes a weighted combination of region-based and pixel-wise objectives. Region-based losses (Dice, IoU) directly align with the mIoU evaluation metric, while binary cross-entropy provides stable gradients during early training and sparse supervision scenarios.

Region-Based Loss Functions

Maximizing Overlap Metrics

Dice and IoU losses operate on entire prediction regions, providing strong supervision signal even when pixel-level labels are sparse.

Dice Loss

\mathcal{L}_{\text{Dice}} = 1 - \frac{2 \sum_i \hat{p}_i g_i}{\sum_i \hat{p}_i + g_i}

Properties: Numerically stable, balanced precision-recall

IoU Loss

\mathcal{L}_{\text{IoU}} = 1 - \frac{\sum_i \hat{p}_i g_i}{\sum_i \hat{p}_i + g_i - \hat{p}_i g_i}

Properties: Directly optimizes mIoU metric

Composite Objective Function

Blending Region and Pixel Losses

The final objective combines region-based terms with binary cross-entropy for improved gradient flow and training stability.

Weighted Combination

\mathcal{L}_{\text{total}} = \lambda_{\text{REG}} \mathcal{L}_{\text{REG}} + \lambda_{\text{BCE}} \mathcal{L}_{\text{BCE}}

REG ∈ {Dice, IoU} selected via cross-validation

Hyperparameters

λ_REG = 1.0

λ_BCE = 0.2

Fixed across all experiments

Class Imbalance Handling

Challenge: 3.88× more background pixels

\mathcal{L}_{\text{BCE}} = -\sum_i p_c g_i \log \hat{p}_i + (1-g_i) \log(1-\hat{p}_i)

Tested

p_c \in \{1, 2, 3, 3.8\}

Rationale

BCE: Reliable pixel-level guidance

Region Loss: Captures global structure

Gradients from region losses can be weak when overlap is low

Data Augmentation

Augmentation Strategy

Data augmentation increases training set diversity and prevents overfitting. We employ standard semantic segmentation transforms alongside a novel synthetic scribble generation algorithm to simulate varied annotation patterns.

Semantic Segmentation Augmentations

Standard Geometric & Photometric Transforms

Augmentations are applied jointly to image, scribble, and mask to preserve spatial correspondence and annotation integrity.

Geometric

Rotation
Translation
Scaling
Horizontal / vertical flips

Maintains spatial alignment across image, scribble, and mask.

Photometric

Color jitter
Brightness / contrast
Saturation

Applied to the RGB image only.

Spatial Deformations

Random crop
Elastic transform
Grid distortion

Aggressive deformations used for higher augmentation settings.

Filtering

Gaussian blur

Image-only smoothing to reduce high-frequency noise.

Foreground-Aware

Random crop with foreground bias

Prioritizes regions containing foreground pixels.

Consistency Rule

Same transform applied to image, scribble, and mask
Preserves label alignment under weak supervision

Synthetic Scribble Generation

Simulating Human Annotation Patterns

An algorithmic pipeline generates realistic scribble annotations from ground truth masks, enabling training on full segmentation labels while simulating sparse supervision.

Foreground Scribbles

Step 1: Morphological closing of mask

Step 2: Extract connected components

Step 3: Sample random line inside each region

Step 4: Dilate lines to match thickness

Only components above minimum area threshold are annotated

Background Scribbles

Step 1: Compute foreground bounding box

Step 2: Define four background regions with margin

Step 3: Randomly select one region (area-weighted)

Step 4: Draw and dilate background line

Encoded as -1 by subtracting from foreground scribbles

Augmentation Configurations

Three augmentation intensity levels were systematically evaluated to determine the optimal trade-off between diversity and label preservation.

Low Augmentation

Affine transforms
Flips
Color jitter
Scribble augmentation

Focus: Basic geometric invariance

Medium Augmentation

Low augmentation +
Random crop

Focus: Spatial context variation

High Augmentation

Medium augmentation +
Elastic transform
Grid distortion
Gaussian blur

Focus: Aggressive deformation robustness

Model Architecture

Encoder Selection

Multiple lightweight encoders were evaluated. EfficientNet-B2 emerged as the optimal choice, balancing parameter efficiency with strong feature representation capacity.

Decoder Architecture

Standard U-Net decoder with scSE (Spatial and Channel Squeeze & Excitation) attention blocks for refined feature recalibration at multiple scales.

Architecture Exploration

Systematic Encoder Evaluation

Initial experiments with MobileNetV3 and ResNet-18 revealed insufficient capacity for the sparse supervision regime. EfficientNet models provided superior performance through compound scaling.

MobileNetV3

Pros: Extremely lightweight

Cons: Limited representational power

Unable to achieve low training loss

ResNet-18

Pros: Well-established architecture

Cons: Suboptimal parameter efficiency

Decent but not optimal performance

EfficientNet-B2

Pros: Balanced efficiency & capacity

Selected: Best validation mIoU

Optimal trade-off for this task

Final Architecture Details

EfficientNet-B2 U-Net with scSE Attention

The architecture combines efficient compound scaling with spatial and channel attention mechanisms for precise multi-scale feature refinement.

Encoder

Backbone: EfficientNet-B2

Initialization: From scratch

Dropout: 0.2 per block

Depth-5 hierarchy, 32x downsampling

Decoder

Style: U-Net symmetric skip connections

Attention: scSE blocks

Concurrent spatial and channel recalibration

Implementation

Framework:segmentation_models.pytorch

Encoder Source:timm

Training Configuration

Optimization Strategy

AdamW optimizer with cosine annealing learning rate schedule and early stopping based on validation mIoU plateau detection.

Computational Efficiency

Mixed-precision training (bfloat16) on A100 GPUs enables larger batch sizes and faster convergence without sacrificing numerical stability.

Hyperparameters

Optimization

OptimizerAdamW

Learning rate5e-3

Weight decay1e-4

Schedule

PolicyCosine annealing

Min lr1e-7

Training length8K–16K steps

Batching

Batch sizes6, 8, 12

Evaluated across configurations

Precision & Hardware

Precisionbfloat16

AcceleratorA100 GPUs

Early Stopping

Patience60 epochs

MetricValidation mIoU

Experimental Results

Evaluation Methodology

5-fold cross-validation was employed to robustly estimate performance and select the optimal configuration. Final test predictions used an ensemble of all five fold models to reduce variance and improve generalization.

Cross-Validation

Folds: 5

Strategy: Stratified split

Selection: Max mean mIoU across folds

Ensemble Prediction

Method: Average probability maps

Models: All 5 fold checkpoints

Threshold: τ = 0.5

Data Utilization

Training set: ≈181 images

Leakage: None (fold-based inference)

Efficiency: All data used for final model

Performance Summary

Test Set Performance

0.8569

mIoU on first test set

Background IoU

0.9215

Foreground IoU

0.7923

Cross-Validation mIoU

0.8758

Mean across 5 folds (best config)

IoU Loss + Low Aug + Batch 8 +

p_c=3

Standard Deviation

±0.0169

Fold variance (best config)

Segmentation Example

Visual comparison of model predictions on a test image demonstrates the quality of dense mask recovery from sparse scribble annotations.

Original Image

Input image with background and foreground objects

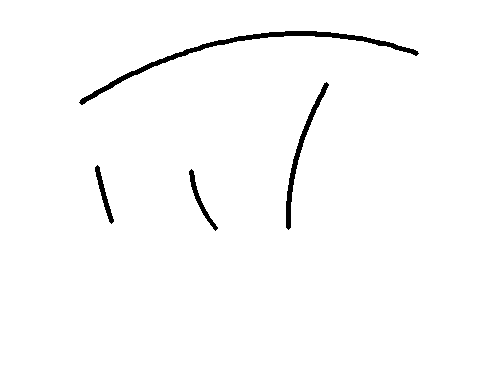

Sparse Scribbles

Minimal supervision: only scribbles provided

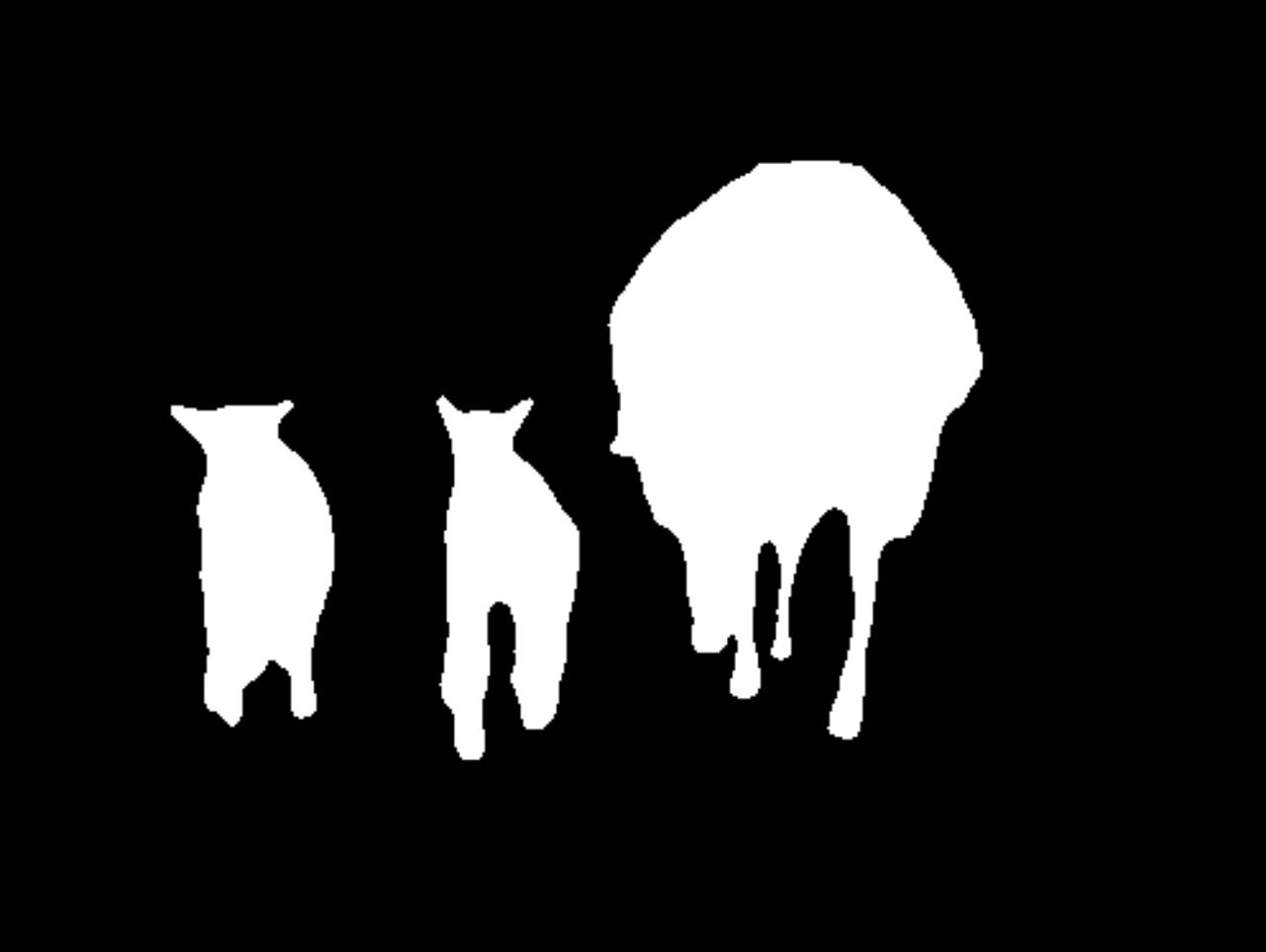

Predicted Mask

Dense mask recovered from sparse input

Ablation Studies

Systematic experiments across 72 configurations revealed the impact of augmentation intensity, positive class weighting, batch size, and loss function on final performance, particularly in the low-data regime.

Loss Function vs Augmentation

IoU loss outperforms Dice loss across all augmentation levels. Lower augmentation yields better results for this task.

Positive Weight Sensitivity

Class weighting

p_c=3

provides optimal balance for foreground objects.

Batch Size Impact

Batch size 8 achieves best trade-off between stability and generalization.

Augmentation Impact

Effect on Validation mIoU

Contrary to typical expectations, aggressive augmentation reduced validation mIoU in this sparse supervision setting.

Observation

Higher augmentation → Lower validation mIoU

Averaged across loss functions and folds

Hypothesis

Small training set (≈181 images)

Challenging sparse annotation regime

Aggressive transforms may corrupt weak supervision signal

Recommendation

Low augmentation performed best

Suggests careful augmentation design critical for scribble supervision

Positive Weight Sensitivity

Class Imbalance Reweighting

Tested BCE positive weights

p_c \in \{1, 2, 3, 3.8\}

to address 3.88x background-to-foreground pixel ratio.

Finding

Limited effect on validation mIoU across tested values

Region-based losses may already handle imbalance effectively

Interpretation

Dice and IoU are inherently robust to class imbalance

BCE contribution (λ=0.2) is secondary to region losses

Key Findings

Architecture Insights

EfficientNet-B2 provides optimal efficiency-performance trade-off
scSE attention enhances feature refinement at minimal cost
Early fusion of scribbles enables contextual interpretation

Loss Design Insights

Region-based losses align well with mIoU evaluation
BCE stabilizes training under sparse supervision
IoU and Dice losses yield similar performance

Augmentation Insights

Low augmentation outperforms aggressive transforms
Small dataset regime requires careful augmentation design
Synthetic scribble generation adds training diversity

Training Insights

Ensemble averaging improves test set stability
Early stopping prevents overfitting to validation set
Mixed-precision training enables efficient experimentation

Conclusion

The final system demonstrates that carefully designed loss functions and strong encoder-decoder backbones can achieve competitive segmentation from sparse scribbles. The approach reduces annotation burden while preserving high-quality masks, making it viable for large datasets with limited labeling budgets.

my resume

too bright? click ↝
